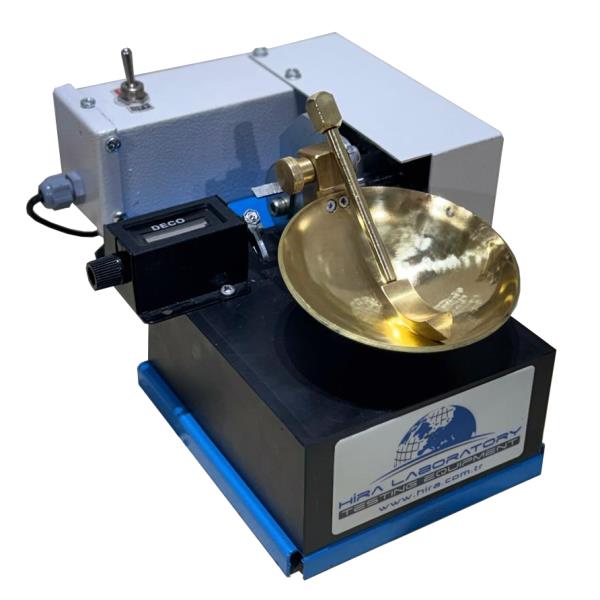

Liquid Limit Device
Used to evaluate the relationship between the moisture percentage of a soil sample and the number of blows required to close a groove made into the soil; and therefore to determine when a clay soil changes from a plastic to a liquid state.
The device is available in two models:
• Hand operated,
• Motor operated at 120 drops/min speed, ensuring better uniformity and accuracy
Comprises a removable brass cup, adjustable crank and cam mechanism, blow counter and base.
Supplied with Brass grooving tool.
Resilience Tester is used for measuring the resilience of liquid limit device bases. Resilience Tester consists of a clear acrylic plastic tube, steel ball and a small bar magnet. Resilience Tester should be ordered separately.
The device is available in two models:
• Hand operated,
• Motor operated at 120 drops/min speed, ensuring better uniformity and accuracy
Comprises a removable brass cup, adjustable crank and cam mechanism, blow counter and base.
Supplied with Brass grooving tool.
Resilience Tester is used for measuring the resilience of liquid limit device bases. Resilience Tester consists of a clear acrylic plastic tube, steel ball and a small bar magnet. Resilience Tester should be ordered separately.
BS 1377:2,ASTM D4318, AASHTO T89
