Ring And Ball Softening Point Apparatus

Used for determining softening point of bituminous materials by ring and ball method.

The softness of bitumen depends, amongst other factors, on the temperature of the substance, where, as the temperature is raised, the softness of the bitumen increases.

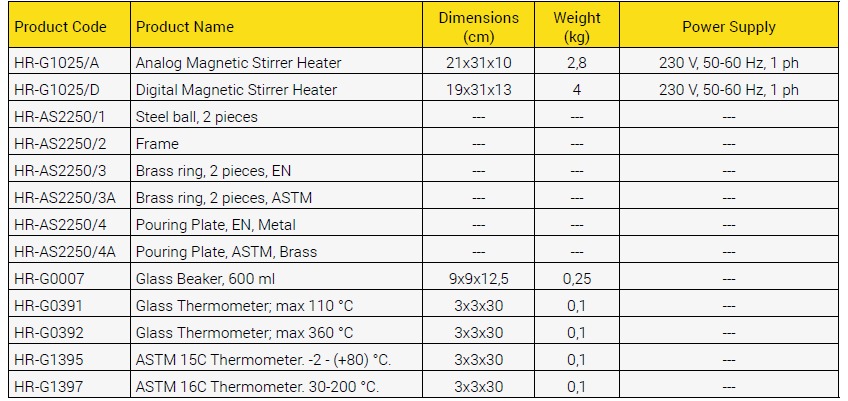

Analog Ring and Ball Test Set is supplied complete with an Analog hotplate with magnetic stirrer, 2 steel balls, Frame (thermometer and ring holder, ball centering guide and bottom plate), 2 brass rings (ASTM or EN (It must be specified at the time of order.)), 600 ml glass beaker and max. 110 °C thermometer.

Dijital Ring and Ball Test Set is supplied complete with a Digital hotplate with digital magnetic stirrer (with Immersion type temperature sensor with it's holder and a stirring bar), 2 steel balls, Frame (thermometer and ring holder, ball centering guide and bottom plate), 2 brass rings (ASTM or EN (It must be specified at the time of order.)), 800 ml glass griffin beaker and max. 110 °C thermometer.

Glass or ASTM Thermometers and Pouring Plate should be ordered separately.
