Transverse Deformation Jig
Specially designed for transverse deformation testing of tile adhesives and grouts in conformance with the stringent requirements of EN 12004. Design base on standard specifies the methods for determining characteristics for adhesives used in internal and external installation of ceramic tiles. Ceramic tile adhesives can be used also for other kinds of tiles (natural and agglomerated stones, etc.) if they do not adversely affect the stones.

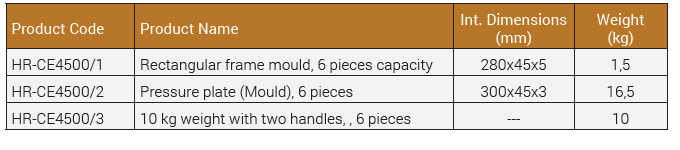

The set is complete with 6 pieces capacity Rectangular frame mould for specimen to EN12004, internal dimensions 280 x 45 mm, 5 mm thickness (Template A), 6 pieces Pressure plate (Mould) for specimens to EN 12004, dimensions 300mm x 45 mm, 3 mm thickness (Template B) and 6 pieces 10 kg weight with two handles for preparation of specimen to EN12004.
The set is complete with 6 pieces capacity Rectangular frame mould for specimen to EN12004, internal dimensions 280 x 45 mm, 5 mm thickness (Template A), 6 pieces Pressure plate (Mould) for specimens to EN 12004, dimensions 300mm x 45 mm, 3 mm thickness (Template B) and 6 pieces 10 kg weight with two handles for preparation of specimen to EN12004.
EN 12004
